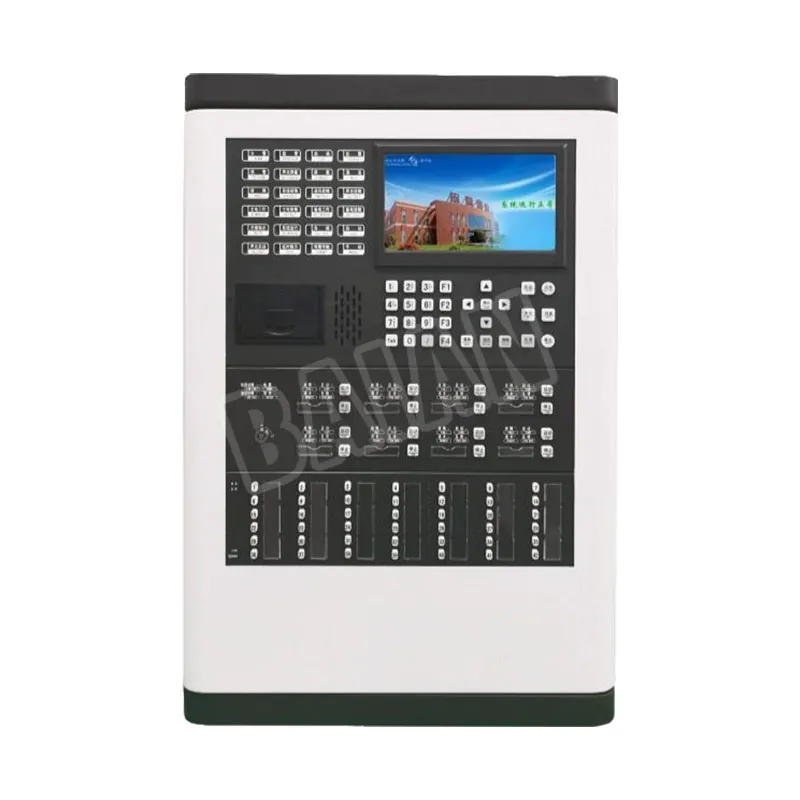

Fire alarm controller

JB-TBL-EI8000S2

Fire alarm controller

Features

1.Centralized area compatible design, integrating multiple functions such as fire alarm, linkage control, monitoring alarm, and network communication;
2.Employs multi-CPU parallel processing, CAN network, and intelligent digital bus technologies to collect alarm signals and environmental parameters such as smoke and temperature in real time, and performs fire assessment through analysis and processing;
3.Automatically controls relevant fire-fighting equipment and implements linkage fire suppression based on linkage action relationships and logic settings;
4.Strong anti-interference and anti-vibration capabilities, reliable operation, stable performance, low false alarm rate, flexible expansion, and convenient maintenance;
5.Features a 7-inch LCD screen, full Chinese character display, and menu wizard for convenient user operation and use.

Technical Parameter

Wiring system Non-polar dual-wire battery
AC input voltage 220V1015, 50Hz±1%
AC input power ≤150W
DC backup power DC24V/7Ah fully sealed maintenance-free battery
Circuit capacity ≤242 address points
Total capacity ≤968 address points (E18000S); ≤1452 address points (E18000S2)
Number of multi-line linkage control monitors ≤1 (8 buttons/disc)
Number of bus linkage control monitors ≤1 (42 buttons/disc)
Bus length ≤2000 meters (cross-sectional area ≥1.5mm²)
Dimensions 410mm (length) × 130mm (width) × 600mm (height)
Standards implemented GB4717-2005 "Fire Alarm Controllers"
GB16806-2006 "Fire Protection Linkage Control Systems"
