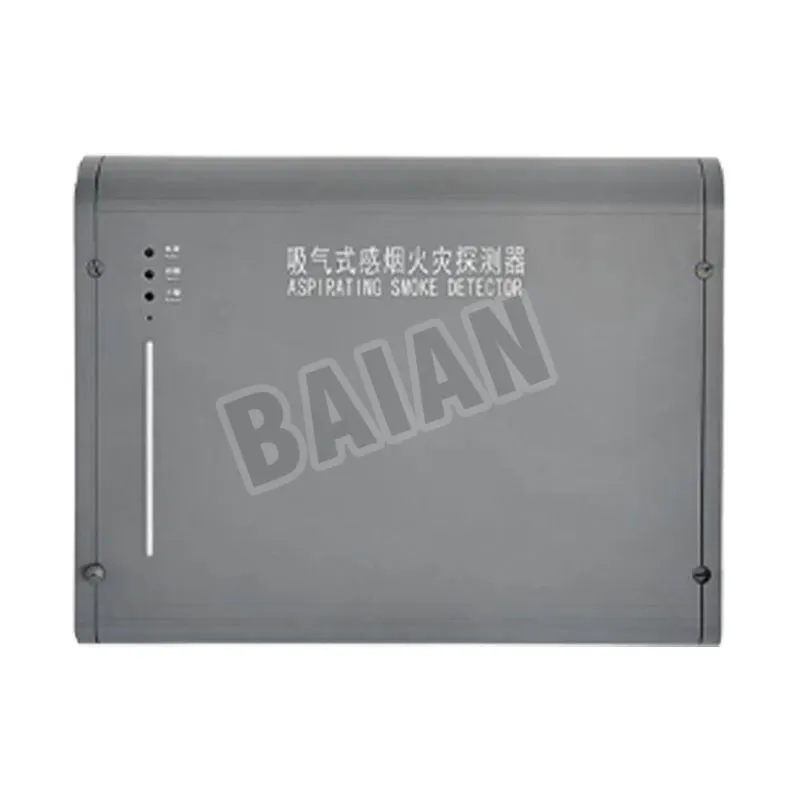

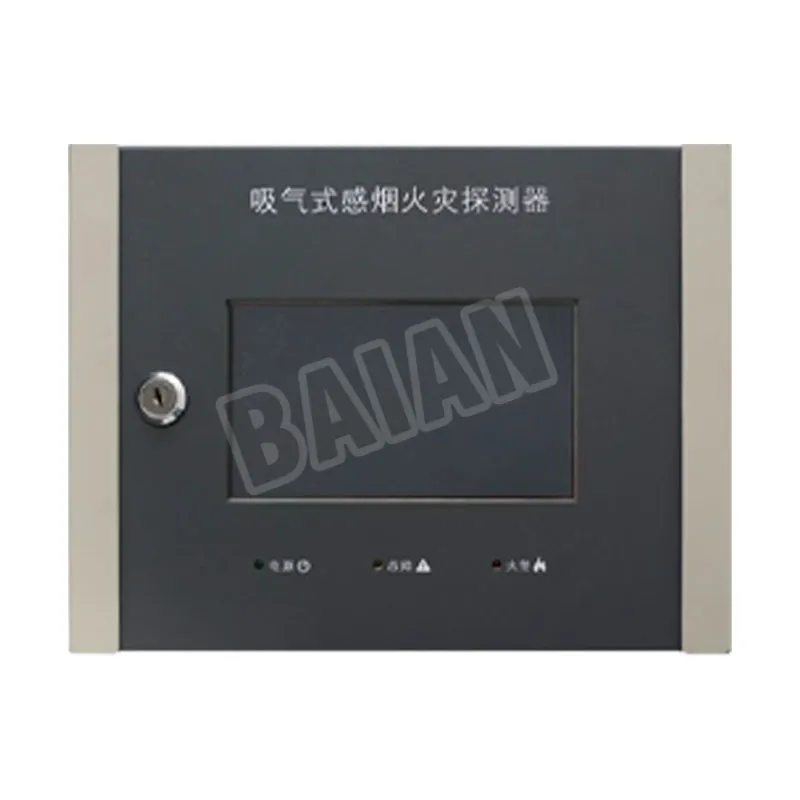

Aspirating Smoke Detector

Professional Aspirating Smoke Detector manufacturer - Baian. We offers reliable, certified fire fighting equipment backed by technical support and global experience.

ISO 9001 Global shipping Pyrosafe Tech
  • Engineering support with NFPA / EN compliant documentation
  • Worldwide shipping with stock-ready warehouse capacity
  • Certified equipment with traceable quality control
Specifications

Technical parameters

ParameterValue
Transport Temperature-40°C to 70°C
Storage Temperature-40°C to 70°C
Operating Humidity5%-95%, non-condensing
Storage Humidity5%-95%
Altitude Requirement0 m to 4000 m (In environments between 2000 m and 4000 m, the operating temperature decreases by 1°C for every 200 m increase in altitude)
Operating CurrentMaximum operating current: 1.3A
Sensitivity Range≤0.8%obs/m (refer to national standard GB15631-2008)
Filtering2-stage filtration
Analysis ChamberSingle chamber
Address Points1 address point
Sampling Tube SizeOuter diameter: 25mm; Inner diameter: 21mm
Sampling Hole Diameter2.0mm x 25, 5.0mm (end cap) x 1/tube
Airflow Monitoring3 levels
Event Log30,000 pieces
Alarm Levels5 levels
Intake VolumeStepless speed regulation
Relay Output3 pairs
Relay CarrierDC30V 2Amax/AC125V 0.5Amax
Communication MethodDual bus, RS485
MTBF100,000 hours
Dimensions300mm×230mm×115mm (L×H×D)
Weight<4.2kg
Installation MethodWall-mounted installation
Heat Dissipation MethodNatural heat dissipation
<span style="font-weight: bold">Execution Standards</span>GB15631-2008
Product Details

About this product

Professional Aspirating Smoke Detector manufacturer - Baian. We offers reliable, certified fire fighting equipment backed by technical support and global experience.
