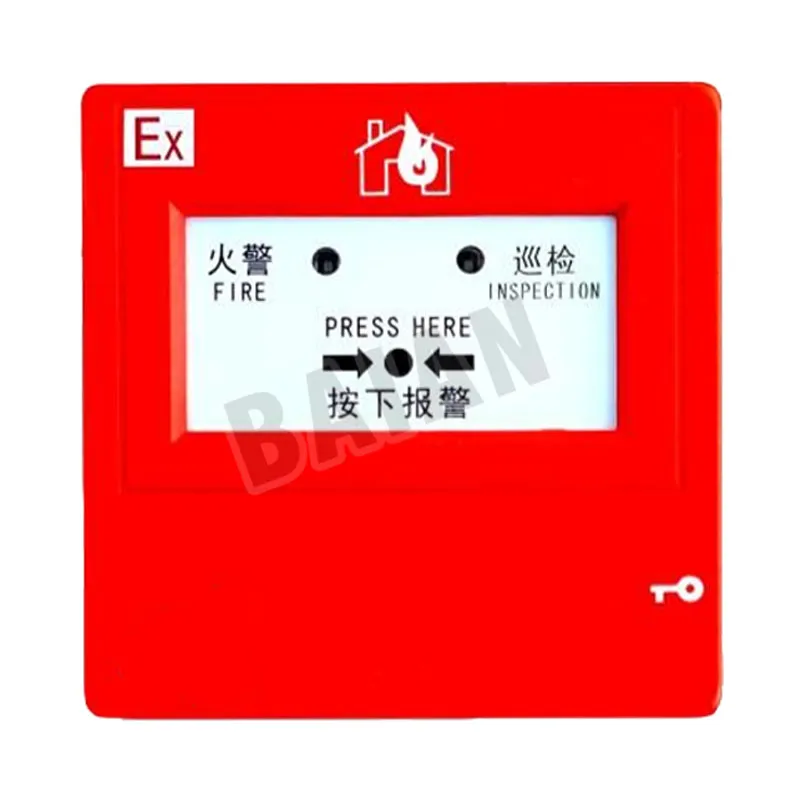

Fire alarm button
Professional Fire alarm button manufacturer - Baian. We offers reliable, certified fire fighting equipment backed by technical support and global experience.
- Engineering support with NFPA / EN compliant documentation
- Worldwide shipping with stock-ready warehouse capacity
- Certified equipment with traceable quality control
Specifications
Technical parameters
| Parameter | Value |
|---|---|
| Operating Environment | Temperature: -10℃~+55℃; Humidity: ≤95%RH (non-condensing) |
| Operating Voltage | Bus 24V (powered by safety barrier) |
| Monitoring Current | ≤0.2mA |
| Alarm Current | ≤0.8mA |
| Fire Alarm Indicator | Normal monitoring status: flashing red; fire alarm status: solid red |
| Explosion-proof Mark | ExibII CT6 Gb |
| Wire Type | Two buses (non-polarized) |
| Button Contact Capacity | DC24V/0.1A |
| Intrinsically Safe Explosion-proof Parameters | Ui:28VDC li:93mA Pi:0.65W Ci:0.02μF Li: 0mH |
| Associated Equipment | S2004/S2003 Zener Safety Barrier |
| Enclosure Protection Rating | IP30 |
| Enclosure | ABS Red |
| Dimensions | 90mm×90mm×41mm (including base) (L×W×H) |
| Base Mounting Hole Spacing | 55mm~60mm |
| Applicable Standards | GB19880-2005 "Manual Fire Alarm Buttons", GB3836.1-2010 "Explosive Atmospheres - Part 1: General Requirements for Equipment", GB3836.4-2010 "Explosive Atmospheres - Part 4: Equipment Protected by Intrinsic Safety 'T'" |
