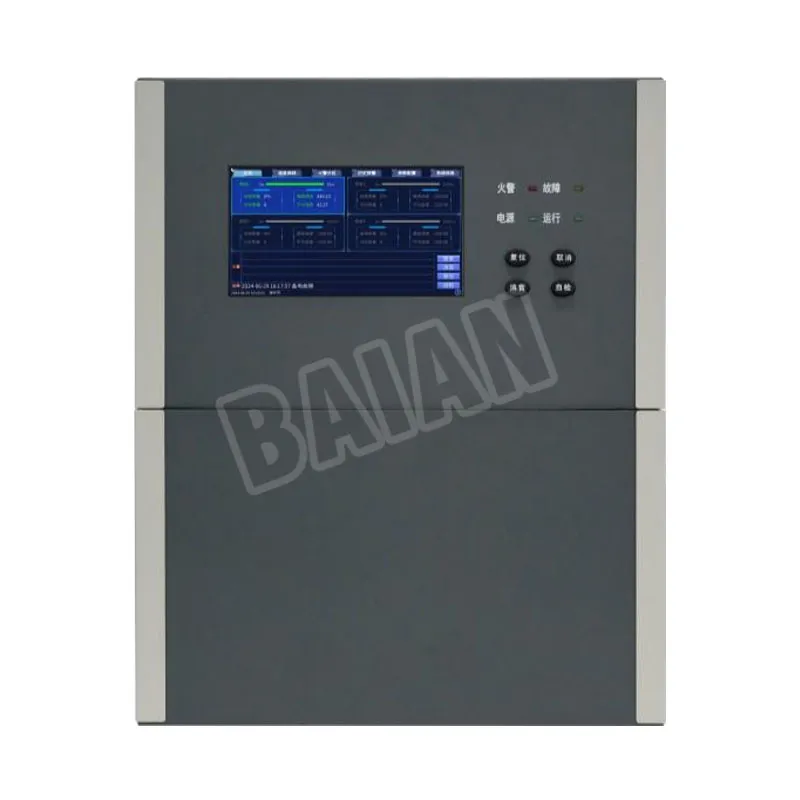

Distributed Fiber Optic Linear Heat Detector
Professional Distributed Fiber Optic Linear Heat Detector manufacturer - Baian. We offers reliable, certified fire fighting equipment backed by technical support and global experience.
- Engineering support with NFPA / EN compliant documentation
- Worldwide shipping with stock-ready warehouse capacity
- Certified equipment with traceable quality control
Specifications
Technical parameters
| Parameter | Value |
|---|---|
| Operating Environment | Temperature: -10℃~50℃; Humidity: ≤95%RH (non-condensing) |
| Fiber Optic Parameters | Fiber type: Multimode fiber (62.5/125um); Fiber connector: E2000/APC |
| Measurement Parameters | Measurement channels: 4 channels; Measurement distance: 10km (standard), maximum support 12km |
| Spatial Resolution | Standard: ±1m, maximum support ±0.4m |
| Positioning Accuracy | Standard: ±1m, maximum ±0.4m |
| Measurement Time | Typical value 3S/channel (within 10km) |
| Alarm Activation Temperature | 60℃, 70℃, 85℃, supports differential temperature alarm |
| Temperature Measurement Range | Standard temperature measurement fiber optic cable: -50℃-120℃ (long-term -4℃) 5℃-85℃ |
| Temperature Measurement Accuracy | ±0.1℃ (related to fiber location, measurement time, etc.); temperature resolution 0.01℃ |
| Power Supply | Standard power supply: DC24V/2A |
| External Display | Standard 7-inch touchscreen LCD, capable of displaying temperature curves, optical cable construction quality, and other functional units |
| Communication Interface | 1 RJ45 network port; 1 RS485 port; 1 CAN port; 8 relay ports; 2 USB interfaces; |
| Dimensions | 348mm×90mm×430mm (width×thickness×height) |
