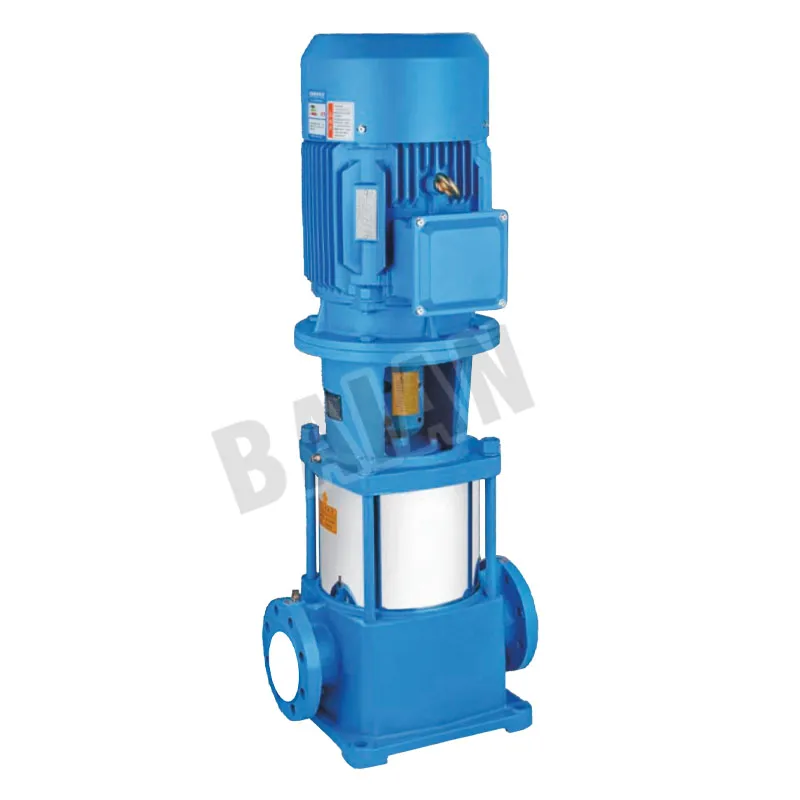

Vertical multi-stage in-line centrifugal pump

Vertical multi-stage in-line centrifugal pump

Product Introduction

1. Vertical Structure: The vertical structure features a small footprint, with the pump's center of gravity centered at the pump feet, resulting in smooth operation, minimal vibration, and a long lifespan.
2. Convenient Installation: Vertical centrifugal pumps are of the same diameter and located on the same horizontal centerline, eliminating the need to modify the piping structure and allowing for direct installation anywhere on the pipeline.
3. Cost-Effective: The motor, with its rainproof cover, can be installed outdoors without the need for a pump room, significantly reducing capital investment.
4. Widely Applicable: The vertical centrifugal pump's head can be adjusted to meet varying requirements by varying the number of stages (impellers), resulting in a wide range of applications.
5. Reliable Sealing: The shaft seal utilizes a carbide mechanical seal, ensuring reliable sealing, no leakage, and minimal mechanical loss.

Core Advantages

1.Fully Electric Protection
Prevents impacts during production and protects the stator coils
2.High-performance design, no burnout
Built-in overload protection and phase loss protection prevent burnout
3.Long-lasting durability
Long bearing life, low noise, and energy savings
4.Excellent heat dissipation
Full contact between the core and the casing ensures excellent heat dissipation and low operating temperature rise.

Applications

Centrifugal pumps are particularly suitable for boiler water supply, and can also be widely used in various industries such as pressure vessel water supply, hot water circulation, high-rise building water supply, farmland irrigation, fire boosting, hydraulic flushing, food, brewing, medicine, chemical industry, aquaculture, environmental protection, chemical process and machine tool supporting, as power equipment for water supply and drainage.

Specifications

1. Liquid Flow Range: 1-200 m³/h
2. Head Range: 1-300 m
3. Power Range: 0.18-160 kW
4. Diameter Range: φ15-φ500 mm
5. Material: Stainless steel pump casing, ball mill pump casing, stainless steel impeller, stainless steel shaft

Operating Conditions

1. Liquid temperature: -15°C to +104°C. This pump can pump clear water or liquids with similar physical and chemical properties to clear water.
2. Maximum operating pressure: <2.5 MPa (system pressure = inlet pressure + closed valve operating pressure <2.5 MPa).
3. Ambient temperature: below 40°C, relative humidity: not exceeding 95%.
