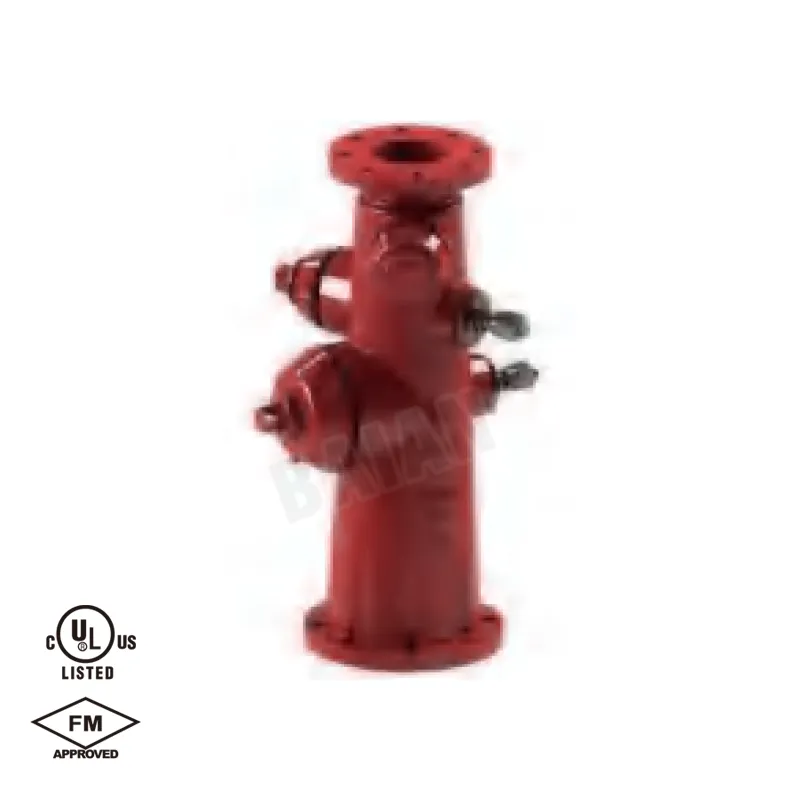

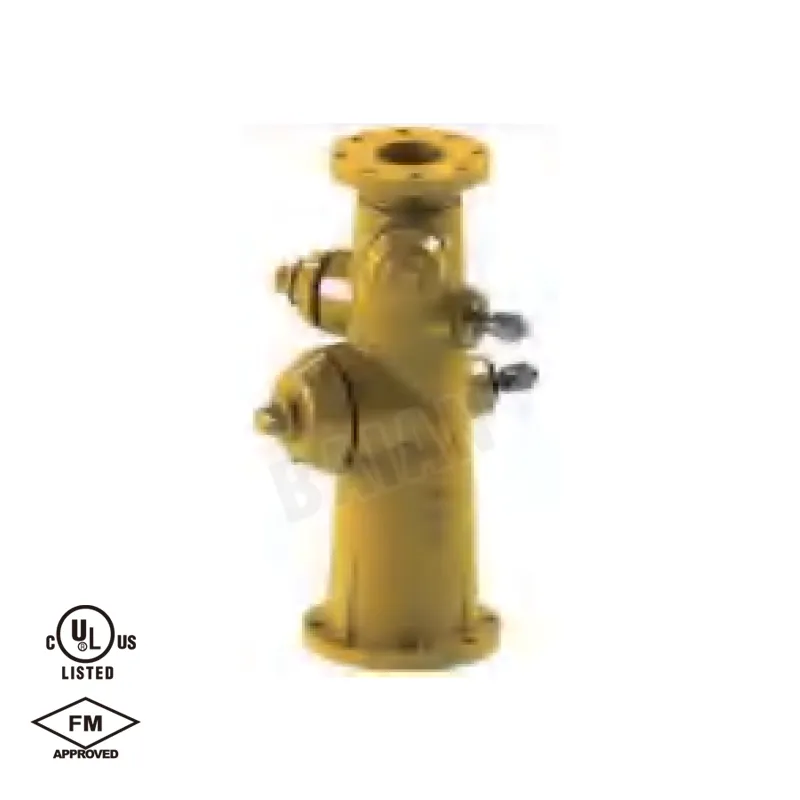

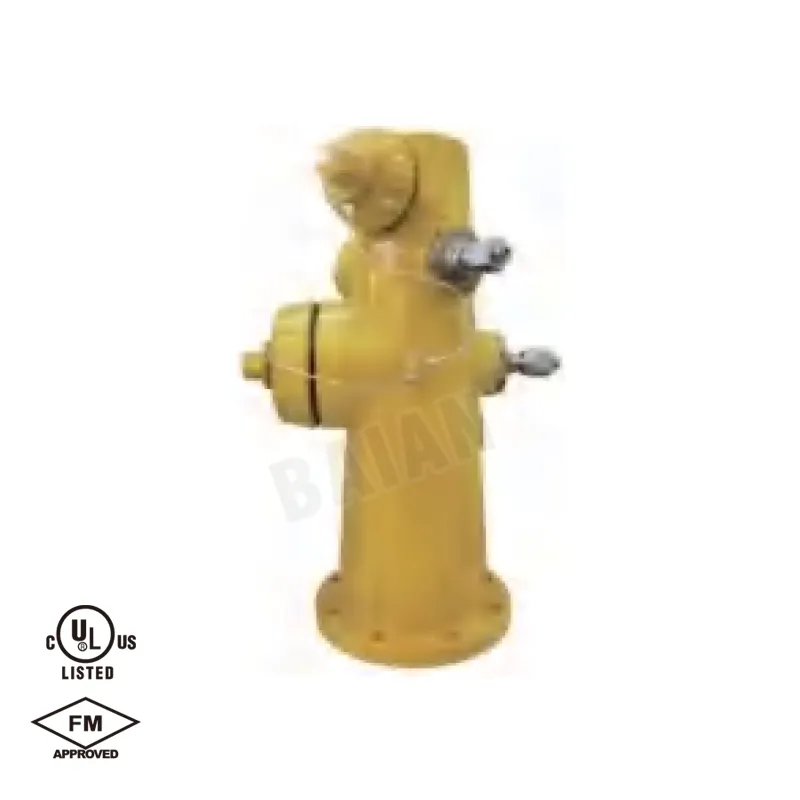

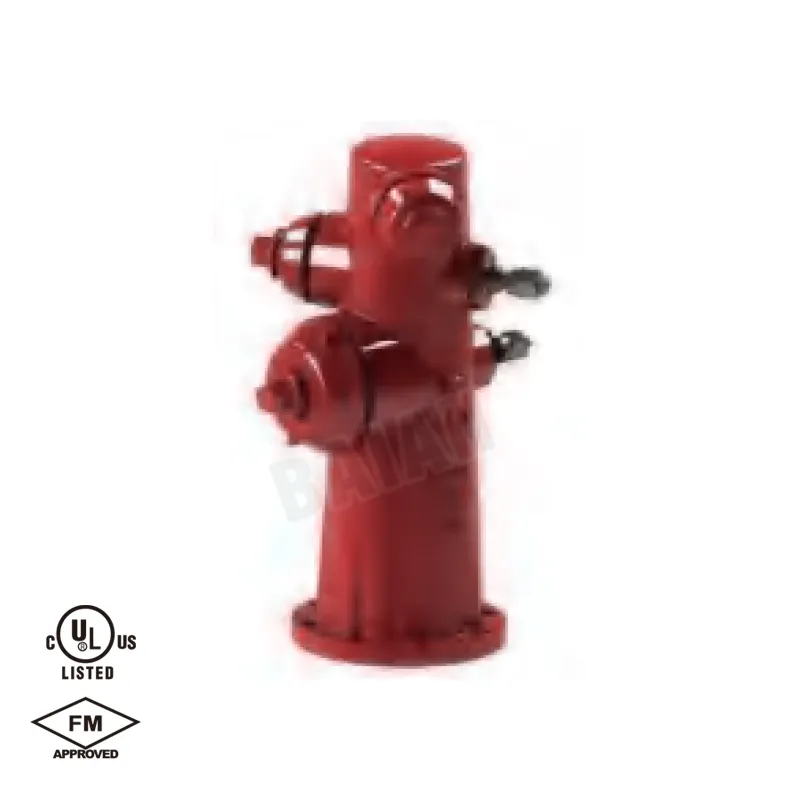

UL Listed Wet Barrel Fire Hydrant

Technical Specification

Design Standard：FM 1511 / UL 246 / AWWA C503
Coating Standard：AWA C550
Nozzle Thread Standard：NFPA 1963
Hose Nozzle：2.5"*2
Pumper Nozzle：4.5" Or 4"*1
Monitoe Flange：Size: 4" ASNI Class 125/150
Inlet Flange Connection：Size: 6" ASNI Class 125/150
Flange End：BS EN 1092-2 PN10/PN16
Working Pressure：250PSI
Coating：The valve are with epoxy coating.Red (RAL3002)/Yellow (RAL1003)

Material Specification

No. Part Material Specification
1 Body Ductile Iron ASTM A536 65-45-12
2 Chain Stainless Steel SS304
3 O-Ring EPDM --
4 Pumper Nozzle Cap Ductile Iron ASTM A536 65-45-12
5 Pumper Nozzle Brass C84400
6 Pumper Nozzle Gasket EPDM --
7 4.5" Gland Stainless Steel CF8
8 Hex. Socket Set Screws With Flat Point Steel A2
9 4.5" Disc Sealing Ring EPDM --
10 4.5" Disc Steel CF8
11 Shaft One Stainless Steel SS304/ SS420
12 Fasten Nut Stainless Steel CF8
13 Hex. Socket Cap Screw Stainless Steel A2-70
14 Shaft Two Stainless Steel SS304/ SS420
15 Shaft Three Stainless Steel SS304/ SS420
16 4.5" Shaft Nut Brass C84400
17 O-Ring EPDM --
18 O-Ring EPDM --
19 Operating Nut Stainless Steel CF8
20 Hex Nut Stainless Steel A2-70
21 O-Ring EPDM --
22 Hose Nozzle Cap Ductile Iron ASTM A536 65-45-12
23 Hose Nozzle Brass C84400
24 Hose Nozzle Gasket EPDM --
25 2.5" Gland Stainless Steel CF8
26 2.5" Disc Sealing Ring EPDM --
27 2.5" Disc Stainless Steel CF8
28 Shaft Two Stem Nut Brass C84400
29 Hex. Socket Set Screws With Flat Point Carbon Steel+Zn --
30 Hex. Socket Set Screws With Flat Point Carbon Steel+Zn --
31 Shaft Three Stem Nut Brass C84400

Dimension

SIZE H (mm) H1 (mm)
2H1PM 720 --
2H1P -- 662.5
