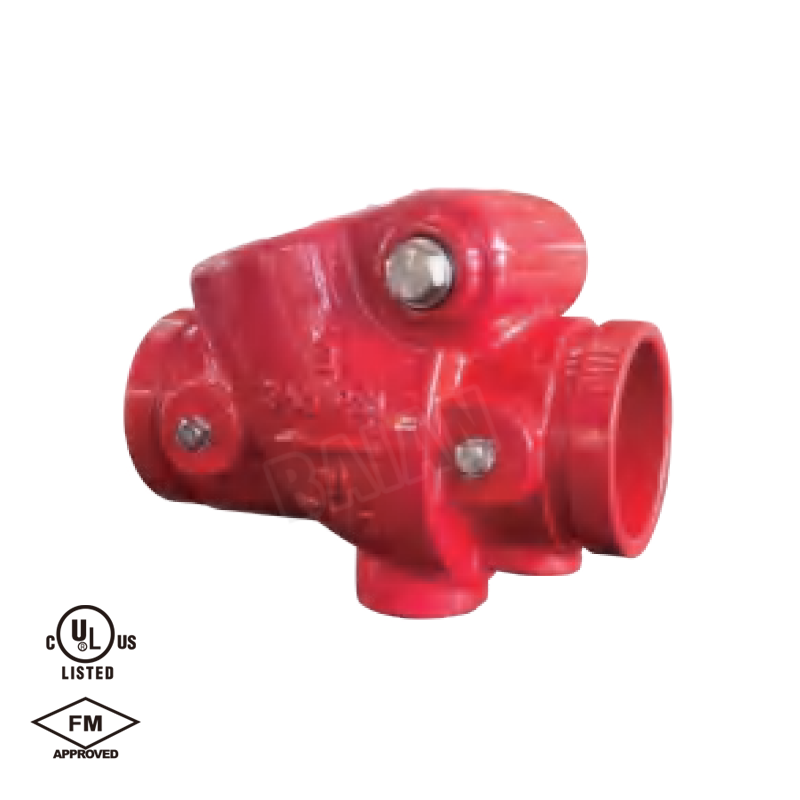

UL Listed Swing Check Valve Resilient Seated Grooved Ends

Technical Specification

Valve Standard：AWWAC508/AWWA C550
Working Pressure：365PSI
Working Temperature：-10°C- 120°C
Connection Ends：AWWA C606 / BG/T 8260

Material Specification

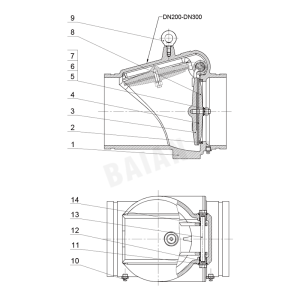

No. Part Material Specification
1 Body Ductile Iron ASTM A536 65-45-12
2 Seat Bronze B271 S83600
3 Disc Ductile Iron ASTM A536 65-45-12
4 Seal Ring EPDM --
5 Set Screw Stainless Steel SS304
6 Hexgona Nut Stainless Steel SS304
7 Plain Washer Stainless Steel SS304
8 Disc Retainer Stainless Steel (DN50 ~ DN150) SS304
Ductile Iron (DN200 ~ DN300) ASTM A536 65-45-12
9 Eyebolt (8" 10" 12") Stainless Steel SS304
10 Plug Stainless Steel SS304
11 Plug The Gasket EPDM --
12 Shaft Hole Plug Stainless Steel SS304
13 Shaft Stainless Steel SS304
14 Bushing Bronze B150 C63000



 Dimension

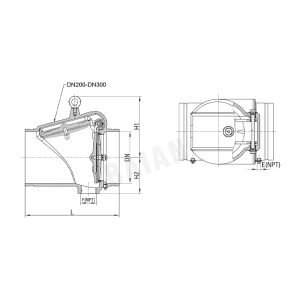

DN INCH L(mm) H1(mm) H2(mm)
50 2" 169 80 63
65 2½" 203 85 68
80 3" 213 93 75
100 4" 245 103 87
125 5" 267 121 95
150 6" 292 140 110
200 8" 356 237 137
250 10" 432 277 161
300 12" 495 309 184

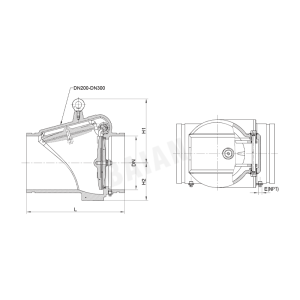

DN INCH L(mm) H1(mm) H2(mm) E F
50 2" 169 80 63 ¼" 1"
65 2½" 203 85 68 ¼" 1¼"
80 3" 213 93 75 ¼" 1¼"
100 4" 245 103 87 ¼" 2"
125 5" 267 121 95 ¼" 2"
150 6" 292 140 110 ¼" 2"
200 8" 356 237 137 ¼" 2"
250 10" 432 277 161 ¼" 2"
300 12" 495 309 184 ¼" 2"
