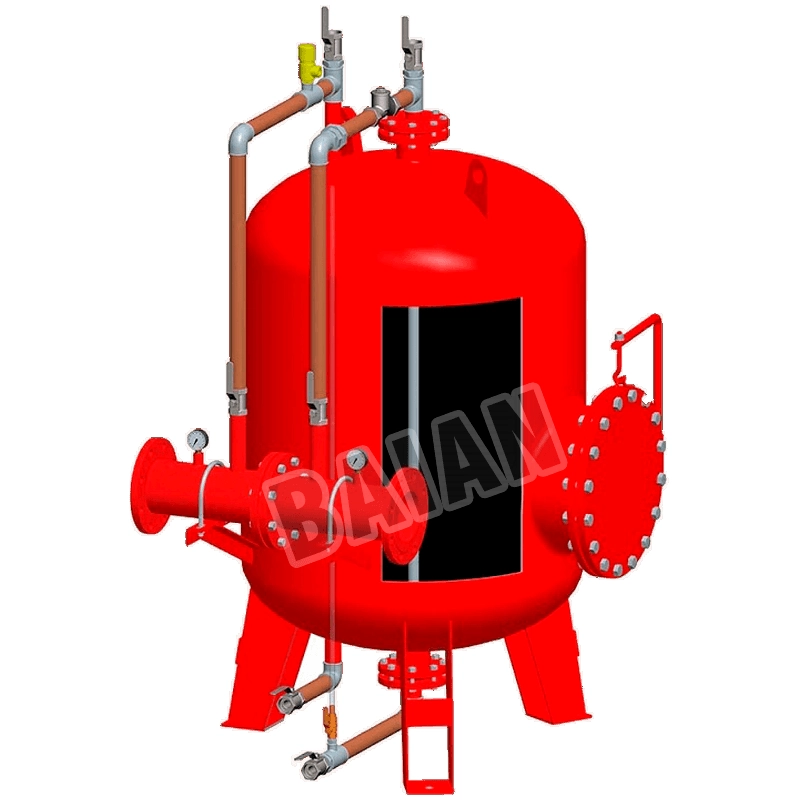

Fixed Foam Bladder Tank Vertical Type

Fixed Foam Bladder Tank Vertical Type

Specifications

1. Operation: Manual
2. Proportioner flange standard: ANSI / BS4504 / GB;
3. Valve body material: carbon steel;
4. Liner material: rubber;
5. Proportioner: standard carbon steel (SS304 stainless steel optional);
6. Ball valve: standard brass (SS304 stainless steel optional);
7. Safety valve: standard brass (SS304 stainless steel optional);
8. Pipeline system: standard carbon steel (SS304 stainless steel optional);

Application scenarios

1. Foam fire extinguishing system: protect Class B fire high-risk areas such as oil depots, chemical plants, and airport fuel depots.
2. Space-constrained scenarios: vertical design saves floor space (40% less space than horizontal).
3. Anti-cross contamination: The capsule physically isolates the foam liquid from water to avoid premix failure.

Working principle

1. Water injection and pressurization: Fire water is injected into the outer cavity of the capsule → squeezes the foam liquid in the capsule.
2. Quantitative delivery: The foam liquid is squeezed out to the proportion mixer (such as 3%/6% concentration) → mixed with water flow and sprayed.
3. Automatic switching: After the capsule is emptied, the water flow is directly output (the system seamlessly switches to pure water fire extinguishing).

Features

1. Zero residue design: Capsule shrinkage rate > 95%, foam liquid utilization rate is extremely high (residue < 1%).
2. Visual monitoring: liquid level gauge + pressure gauge dual indication (pressure drop alarm when the capsule ruptures).
3. Fast filling: reserve the foam liquid injection port, replenishment does not need to empty the system.

Working pressure

1. Design pressure: 1.0~1.6 MPa (in accordance with NFPA 11 standards), bursting pressure ≥ 3 times the working pressure.
2. Capsule pressure resistance: 0.3~1.2 MPa (low pressure start, high pressure seal anti-leakage).
