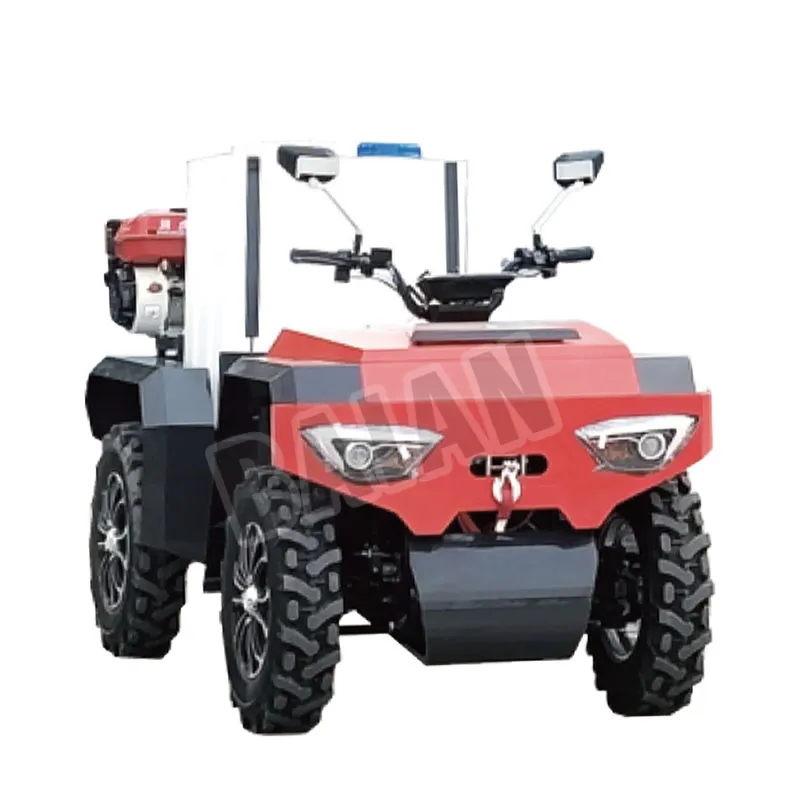

Fire motorcycle
Product Introduction
It is mainly used for the prevention and rescue of forest fires and early fires in large factories, towns and communities. The main scenarios include small-scale fires in forest areas, fire patrols, emergency rescue, complex terrain rescue, etc. It can quickly reach the rescue site and use pulse air pressure spray water guns or high-pressure fine water mist systems for rapid disposal, providing a valuable time window for large rescue teams; it has good off-road performance and can move flexibly on rugged mountain roads and dense forests to meet rescue needs: individual forest fire motorcycles play an important role in the prevention and rescue of forest fires and have broad application prospects.
Technical Parameters
| Body Specifications |
Energy Type |
Pure electric (lithium iron phosphate battery) |
Battery Energy (kWh) |
7.92 |
| Cruise Range (km) |
100 |
Charging Time (h) |
8 (fast charging optional) |
| Body Dimensions (mm) |
2438×1052×1373 |
Curb Weight (kg) |
750 |
| Wheelbase (mm) |
1520 |
Minimum Ground Clearance (mm) |
180 |
| Approach Angle (°) |
55 |
Departure Angle (°) |
65 |
| Body Structure |
Vertical swing articulated body |
| Performance Specifications |
Maximum Power (kW) |
2X3 |
Maximum Torque (N·m) |
2×800 |
| Maximum Speed (km/h) |
50 |
Maximum Gradeability (%) |
70 |
| Pulse Air Pressure Spray Monitor |
Spray Volume (L) |
1 |
High-pressure gas cylinder |
Volume (L) |
9 |
| Pressure (MPa) |
30 |
| Spray Distance (m) |
19.2 |
Effective Number of Injections (Monitor) |
≥130 |
| Spray Interval (s) |
2.5 |
| Fire Extinguishing Performance |
Class A Fire (Solid Fire) |
6A |
| Class B Fire (Liquid Fire) |
5B |
| Class E Fire (Electrical Fire) (2 meters, 50 kV) |
0.04mA |
| High-Pressure Water Mist System |
Power Type |
Gasoline Type |
Operating Pressure (bar) |
100 |
| Working Flow (L/min) |
15/30 |
Range (m) |
Water Mist (m) |
12/14 |
| Fine Water Mist (m) |
6/9 |
| Hose Length (m) |
20/30 |
Water Tank Capacity (L) |
200 |
| Foam Tank Capacity (L) |
12 |
