Fine water mist monitor
Backpack water mist monitor QXWL1.2/18Q-B12-KLH

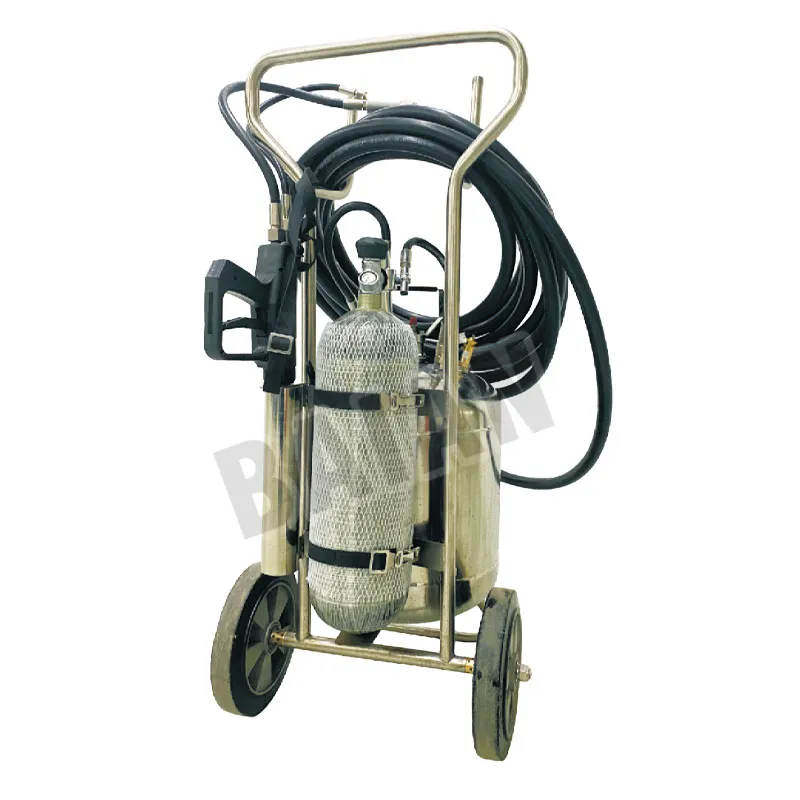

Trolley-type water mist monitor QXWL1.2/13Q-T45-KLH
Product Introduction
A water mist gun is a fire extinguishing device powered by compressed air. It generates a high-speed, high-density, ultra-fine water mist stream by mixing compressed air with the extinguishing medium within the gun body and accelerating it through the nozzle.
Applicable Fires
Class A (solid fires) and Class B (liquid fires).
Applicable Locations
Suitable for areas requiring special protection, such as forests and grasslands, cultural relics and buildings, industrial parks, large factories, warehouses, logistics parks, community streets, stations, airports, subways, and large public transportation vehicles.
Technical Parameters
| Table 1. Backpack water mist monitor QXWL1.2/18Q-B12-KLH |
| Item |
Standard Requirements |
Test Results |
| Basic Parameters |
Gas Cylinder |
Working Volume (L) |
3.0 |
3.0 |
| Nominal Pressure (MPa) |
30±1 |
30 |
| Liquid storage capacity |
Volume (L) |
12 |
12.8 |
| Working pressure (MPa) |
Published value |
0.8 |
| Hose length (m) |
≥1.2 |
1.3 |
| Total mass (kg) (filled with water and compressed air) |
≤30 |
27.8 |
| Spray Performance |
Water mist range (m) |
≥5 |
5 |
| Water mist range (m) |
≥10 |
10 |
| Spray residual rate (%) |
≤5 |
1 |
| Fire Extinguishing Performance |
Class A Fire (Solid Fire) |
≥2A |
4A |
| Class B Fire (Liquid Fire) |
≥55B |
89B |
| Table 2. Trolley-type water mist monitor QXWL1.2/13Q-T45-KLH |
| Item |
Standard Requirements |
Test Results |
| Basic Parameters |
Gas Cylinder |
Working Volume (L) |
6.8 |
6.8 |
| Nominal Pressure (MPa) |
30±1 |
30 |
| Liquid storage capacity |
Volume (L) |
45 |
45 |
| Working pressure (MPa) |
Published value |
0.8 |
| Hose length (m) |
≥15 |
15.5 |
| Total mass (kg) (filled with water and compressed air) |
≤450 |
86.45 |
| Spray Performance |
Water mist range (m) |
≥5 |
5 |
| Water mist range (m) |
≥10 |
11 |
| Spray residual rate (%) |
≤5 |
0.5 |
| Fire Extinguishing Performance |
Class A Fire (Solid Fire) |
≥4A |
4A |
| Class B Fire (Liquid Fire) |
≥144B |
144B |
